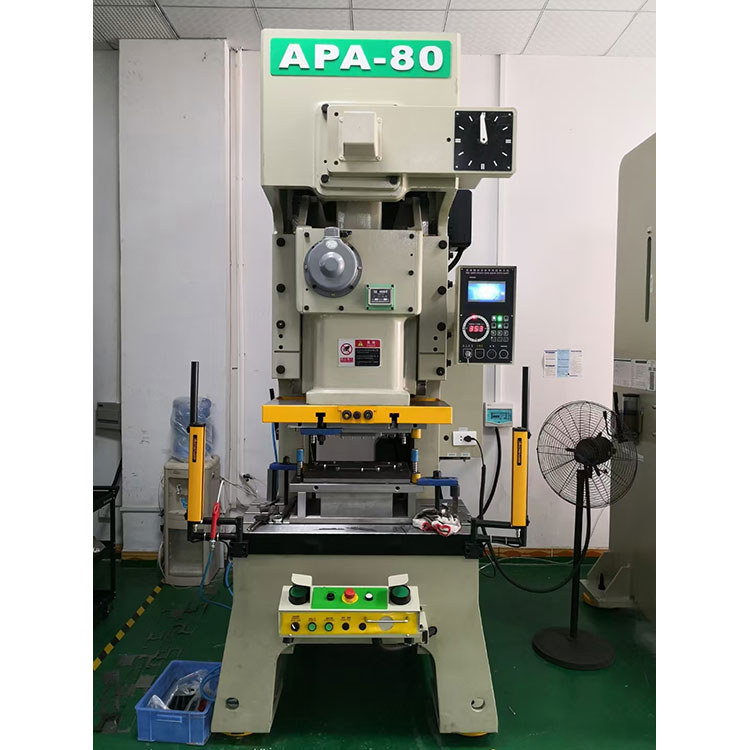

One Point Gap Frame Press
1. Pengenalan produk
Etone one-point gap frame press yaiku desain bingkai kaku dhuwur, dilas nganggo baja berkualitas tinggi lan diproses kanthi proses ngilangi stres internal.
Seri APA nambah stabilitas lan keandalan mesin kanthi presisi. Pusat drive didadekake siji karo tengah mesin kanggo mesthekake punching akurat lan stabil. Etone dadi produsen pers daya gedhe lan misuwur ing China.
2.80 ton mesin parameter Produk:
jeneng |
|
APA-80 |
APA-110 |
APA-160 |
||
Model |
|
Tipe V |
Tipe H |
Tipe V I Tipe H |
Tipe V tipe H |
|
Tonnage |
Ton |
80 |
110 |
160 |
||
Rated titik tonase |
mm |
4 |
2 |
63 |
613 |
|
Kacepetan variabel |
s.p.m |
35-80 |
80-120 |
30-60 60-90 |
20-50 40-70 |
|
|
Kacepetan stabil |
s.p.m |
65 |
50 |
35 |
|
Stroke |
mm |
150 |
70 |
180 80 |
200 90 |
|
Max Die dhuwur |
mm |
340 |
380 |
360 410 |
400450 |
|
Slideradjustmen |
mm |
80 |
80 |
100 |
||
Ukuran geser |
mm |
560 x420x70 |
650x470x80 |
700x550x90 |
||
Bolstersize |
mm |
1000x550x90 |
1150x600x110 |
1250x760x140 |
||
Die nangani bolongan |
mm |
50 |
50 |
50 |
||
Motor utama |
kw |
7.5 |
11 |
15 |
||
Piranti pangaturan panggeser |
HP |
|||||
Tekanan udara sing ditrapake |
kg/cm2 |
6 |
6 |
6 |
||
Tekan presisi |
|
GB(JIS)1 kelas |
GB(JIS)1 kelas |
GB(JIS)1 kelas |
||
Ukuran (LxWxH) |
mm |
1800x1180 x 280 0 |
1900x 1300 x 3200 |
2300x 140x 3650 |
||
Kapasitas bantalan mati |
Ton |
3.6 |
6.3 |
10 |
||
Die bantal stroke |
mm |
70 |
80 |
80 |
||
Die cushion area efektif |
mm2 |
450x310 |
500x350 |
650x 420 |
