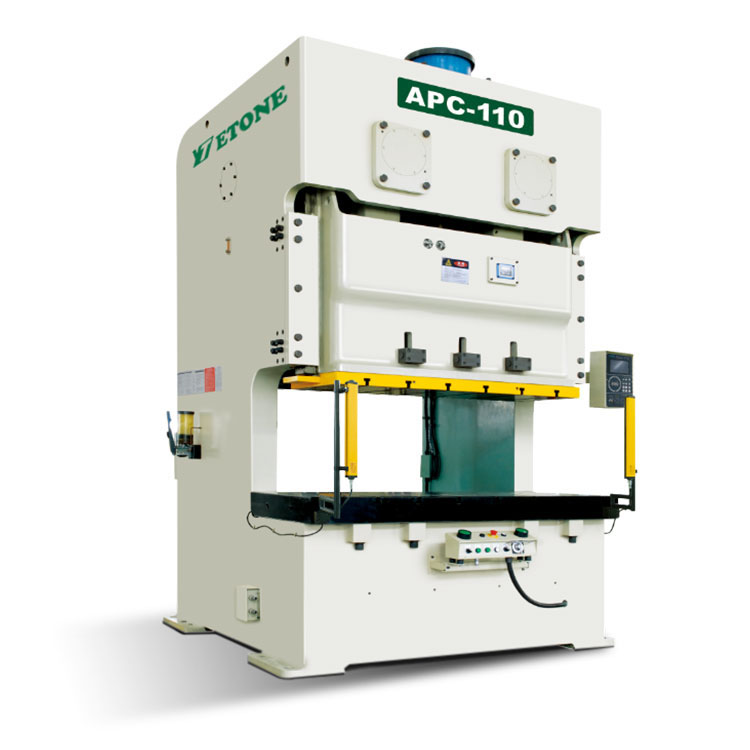

Double Crank Stamping Punch Press

Kapasitas: 110 ton, 160 ton, 200 ton, 250 ton
Ing ngisor iki minangka introduksi kanggo Double crank stamping punch press, muga-muga bisa mbantu sampeyan luwih ngerti Double crank stamping punch press. Welcome pelanggan anyar lan lawas kanggo terus kerjo bareng karo kita kanggo nggawe mangsa luwih apik bebarengan!

Kirim Pitakonan

Deskripsi Produk

Double Crank Stamping Punch Press

We mikir apa klien mikir, urgency saka urgency kanggo tumindak saka kapentingan posisi panuku saka asas, saéngga kanggo kualitas ndhuwur luwih, nyuda biaya Processing, kisaran rega luwih cukup, menang prospek anyar lan lawas support lan negesake kanggo China Grosir China High Precision Double Crank Precision Power Stamping Punch Machine Mechanical Press karo Decoiler Straightene lan Nc Servo Feeder Machine, entuk manfaat lan kepuasan pelanggan biasane dadi tujuan paling gedhe. Elinga hubungi kita. Menehi kita kemungkinan, nyedhiyani sampeyan surprise.China Grosir China Power Presses, Punch Machine, Kita tansah terus prinsip perusahaan "jujur, pakar, efektif lan inovasi", lan misi: supaya kabeh pembalap seneng driving ing wayah wengi, ngidini kita karyawan bisa éling sing regane urip, lan dadi kuwat lan layanan liyane wong. Kita mutusake kanggo dadi integrator pasar produk lan panyedhiya layanan siji-mandeg ing pasar produk.

1.Double crank stamping punch press Pambuka:

C-Frame Double Crank Power Presses/Double crank stamping pukulan press. APC Series dirancang kanggo nolak deflection, lan nyedhiyani pressings akurat, lan urip mati luwih aman. Rangka baja las sing abot lan siji-potongan bisa ngilangi stres lan dirancang kanggo nyedhiyakake basis sing stabil kanggo presse APC Series.

2. Double crank stamping punch press Parameter Produk:

		APC-110			APC-160		APC-200		APC-250
Model		Tipe V	Tipe IH		Tipe V Tipe H		Tipe V I Tipe H		Tipe V	Tipe IH
Tonnage	Ton	110			160		200		250
Titik tonase sing dirating	mm	5		3	6	3	6	3	7		3.5
Dawane stroke	mm	180		110	200	130	250	150	280		170
Stroke	sp.m	35-65		50-100	30-55	40-85	25-45	35-70	20-35		30-60
Max Die dhuwur	mm	400		435	450	485	500	550	550		605
Volume pangaturan panggeser	mm	100			100		120		120
Ukuran meja geser	mm	1800X650X130			2000X760X150		2400X840X170		2700X900X170
Ukuran meja guling	mm	1400X500X70			1600X550X70		1850X650X95		2100X700X95
Motor utama	kW	11			15		18 5		22
Suplai tekanan udara	kg/cm2	5			5		5			5
Precision		JIS (CNS) 1 kelas
Tipe bantal die		Loro piring & rong silinder
Kapasitas	Ton	3.6X2			6.3X2		10X2			14X2
Tekanan udara	kg/cm2	6.5			7.2		6.75		9
Stroke	mm	70			70		80		100
Area piring ndhuwur bantal	mm2		350X235X2		41QX260X2		540X350X			640x470x2
